With the continuous development of industrial automation and intelligent manufacturing, the reliability and service life of industrial equipment have become increasingly important. As a critical component of system stability, the cooling system plays a decisive role in maintaining long term performance. Compared with general product descriptions, a case study approach provides a clearer understanding of how cooling fan solutions perform under real industrial operating conditions.

Project background and cooling requirements

In this case study the industrial equipment was designed for continuous operation in a production environment. Multiple power modules control units and high power components were integrated within a compact enclosure. During prolonged operation these components generated a significant amount of heat. The equipment was installed in an industrial facility with limited natural ventilation, making effective heat dissipation essential. The customer required a reliable industrial cooling fan solution capable of supporting long term continuous operation.

Cooling solution design approach

The design process began with a detailed analysis of internal heat sources and thermal distribution. Key heating areas and temperature sensitive components were identified. Based on this analysis an active cooling approach was selected as the primary method for thermal management. The cooling fan selection needed to meet airflow requirements while also providing sufficient pressure to move air effectively through the internal structure of the equipment.

Fan type selection and system matching

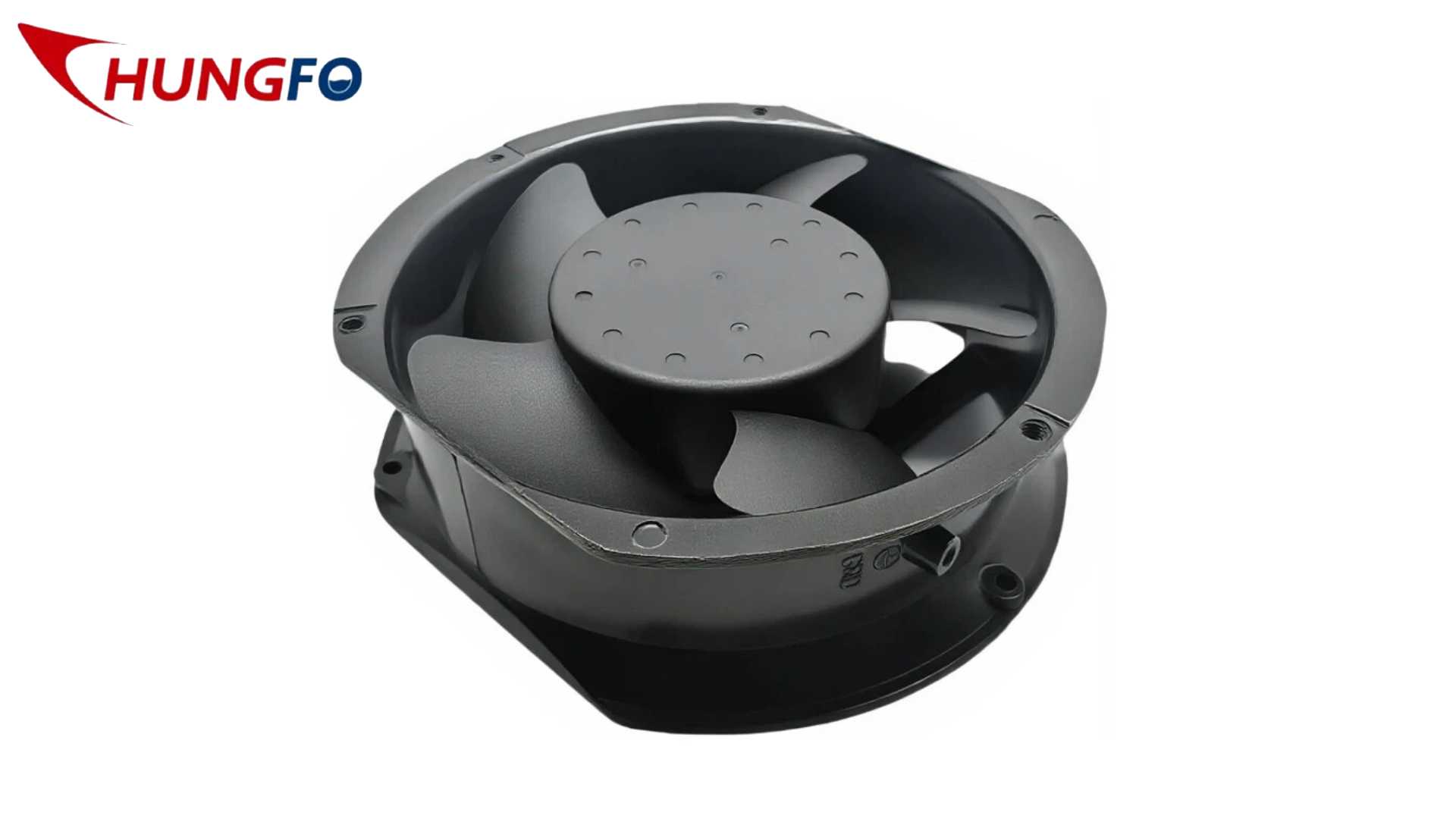

Considering the internal layout and airflow path of the equipment DC fans were selected as the primary cooling components. This type of fan is well suited for industrial cooling applications where stable airflow and overall ventilation are required. Special attention was given to continuous operation capability and performance stability in industrial environments. By positioning the fans strategically airflow was directed toward the main heat generating areas to prevent localized heat buildup.

Installation structure and airflow optimization

To further enhance cooling performance the installation structure was designed to optimize inlet and outlet airflow paths. Cool air was guided into the enclosure from lower temperature areas and directed across critical components before being exhausted. This design minimized hot air recirculation and improved overall thermal efficiency. Protective structures were also incorporated around the fans to ensure operational safety without compromising airflow performance.

Continuous operation performance evaluation

After installation the equipment was placed into continuous operation. Temperature monitoring at critical points showed that internal temperatures remained within acceptable limits even under high load conditions. The cooling fans maintained consistent speed and airflow over extended periods. Noise and vibration levels were stable and within expected ranges. These results confirmed that the cooling fan solution effectively supported long term industrial operation.

Maintenance performance and user feedback

Following a period of operation the customer reviewed maintenance requirements and system performance. Routine maintenance mainly involved periodic cleaning and operational checks. No abnormal failures or frequent replacements were reported. Positive feedback from the user further demonstrated the reliability and practicality of the cooling fan solution in real industrial applications.

Conclusion and application value

This case study demonstrates that an effective cooling fan solution for industrial equipment requires more than simple product selection. It involves a comprehensive understanding of equipment structure heat generation operating environment and continuous operation demands. By carefully selecting fan types and optimizing airflow design reliable and efficient industrial cooling can be achieved. Solutions developed by China Chungfo fan manufacture are designed with real industrial requirements in mind, providing dependable thermal management for a wide range of equipment applications.
