La arquitectura de lujo ya no se define únicamente por materiales costosos, fachadas imponentes, grandes ventanales, mobiliario de alta gama o iluminación sofisticada. Los espacios de lujo modernos se valoran cada vez más por la calidad de la experiencia que ofrecen. La temperatura, la humedad, la calidad del aire interior, el confort acústico, la limpieza visual y la fiabilidad de los sistemas del edificio influyen en cómo los ocupantes perciben un entorno de alta gama.

Entre estos factores, la ventilación es uno de los más importantes y, a la vez, uno de los que más fácilmente se pasan por alto. La gente espera aire fresco, humedad controlada y una eficaz eliminación del calor, pero no desea escuchar constantemente el ruido de los equipos mecánicos que proporcionan estos beneficios. Un sistema de ventilación que funciona bien pero produce un ruido perceptible puede disminuir la sensación de confort y refinamiento que se busca en un edificio de lujo.

Por ello, la integración de extractores de aire silenciosos se ha convertido en un factor clave en el diseño moderno de sistemas de climatización (HVAC). El objetivo no es simplemente adquirir un ventilador con un nivel de ruido bajo. Una solución de ventilación verdaderamente silenciosa requiere la coordinación entre el ventilador, el motor, el flujo de aire, los conductos, la estructura de montaje, el sistema de control, los materiales de construcción y la distribución arquitectónica.

En edificios residenciales de lujo, hoteles boutique, clubes privados, restaurantes de alta gama, tiendas exclusivas, oficinas ejecutivas, centros de bienestar y entornos sanitarios sofisticados, el sistema de extracción a menudo debe funcionar discretamente, sin llamar la atención. El mejor resultado se logra cuando los ocupantes disfrutan de los beneficios de la ventilación sin percatarse conscientemente del equipo.

Para fabricantes como China Chungfo Fan, esto representa una oportunidad para abordar el diseño de ventiladores desde una perspectiva tanto de ingeniería como arquitectónica. Un componente de ventilación compacto puede integrarse a una solución de climatización más amplia si se consideran su comportamiento acústico, el rendimiento del flujo de aire, las dimensiones físicas, las opciones de control y la fiabilidad desde el inicio del proceso de diseño del edificio.

Por qué el ruido importa en los espacios arquitectónicos de lujo

El ruido tiene un impacto psicológico diferente en un entorno de lujo que en un espacio industrial o de servicios comunes. En una fábrica, almacén, taller o sala de máquinas, el ruido de los equipos puede aceptarse como parte del ambiente. Sin embargo, en una habitación de hotel de lujo o una residencia privada, incluso un sonido continuo relativamente bajo puede llegar a ser perceptible.

La arquitectura de lujo suele buscar crear una sensación de calma. Se utilizan materiales naturales, iluminación tenue, texturas cuidadosamente seleccionadas, equipamiento oculto y proporciones espaciales controladas para crear una atmósfera en la que los ocupantes puedan relajarse. Un ventilador que produce un sonido tonal constante puede perturbar esa atmósfera.

El desafío se agrava porque los ventiladores pueden funcionar durante largos periodos. Un breve estallido de sonido puede ser aceptable, pero el funcionamiento continuo genera una percepción diferente. El oído humano es muy sensible a los sonidos tonales repetitivos, especialmente en ambientes silenciosos.

Por este motivo, el ruido del ventilador no debe considerarse una especificación aislada. El nivel sonoro generado por el ventilador es solo una parte del resultado acústico. La turbulencia del aire, la vibración del motor, el comportamiento de los cojinetes, las superficies de montaje, la resonancia del conducto, el diseño de la rejilla y las pérdidas de presión pueden influir en lo que los ocupantes perciben.

Un ventilador con un nivel de ruido aceptable en laboratorio puede volverse ruidoso después de la instalación si el sistema de conductos está mal diseñado. Por el contrario, un ventilador bien seleccionado, combinado con conductos adecuados y aislamiento de vibraciones, puede ofrecer un resultado mucho más silencioso en condiciones reales.

Esta distinción es especialmente importante para los sistemas de climatización arquitectónicos, ya que el ventilador suele estar conectado a una red más amplia. El flujo de aire completo del sistema determina la intensidad del trabajo del ventilador. Si el sistema genera una resistencia excesiva, es posible que el ventilador deba funcionar a mayor velocidad. Una mayor velocidad puede aumentar la turbulencia, la vibración, el ruido del motor y el ruido aerodinámico.

Por lo tanto, el primer principio de una ventilación silenciosa es simple: no diseñe el ventilador por separado del sistema de flujo de aire.

Un funcionamiento silencioso comienza con la selección correcta del ventilador.

El paso más importante para crear un sistema de extracción silencioso es elegir un ventilador que se ajuste a las condiciones de funcionamiento reales. Un error común es seleccionar un ventilador basándose únicamente en el caudal de aire máximo.

El caudal máximo es útil para comparar productos, pero no describe el rendimiento del ventilador tras su instalación. Un ventilador conectado a un sistema de conductos restrictivo puede proporcionar un caudal significativamente menor al que indica su caudal nominal. Si no se alcanza el caudal requerido, el sistema puede compensarlo aumentando la velocidad del ventilador o el tiempo de funcionamiento.

Un mejor proceso de selección tiene en cuenta el flujo de aire, la presión estática, la tensión de funcionamiento, la velocidad, el nivel de ruido, las dimensiones, el sistema de rodamientos, el diseño del motor, las horas de funcionamiento previstas, las condiciones de temperatura y los requisitos de control.

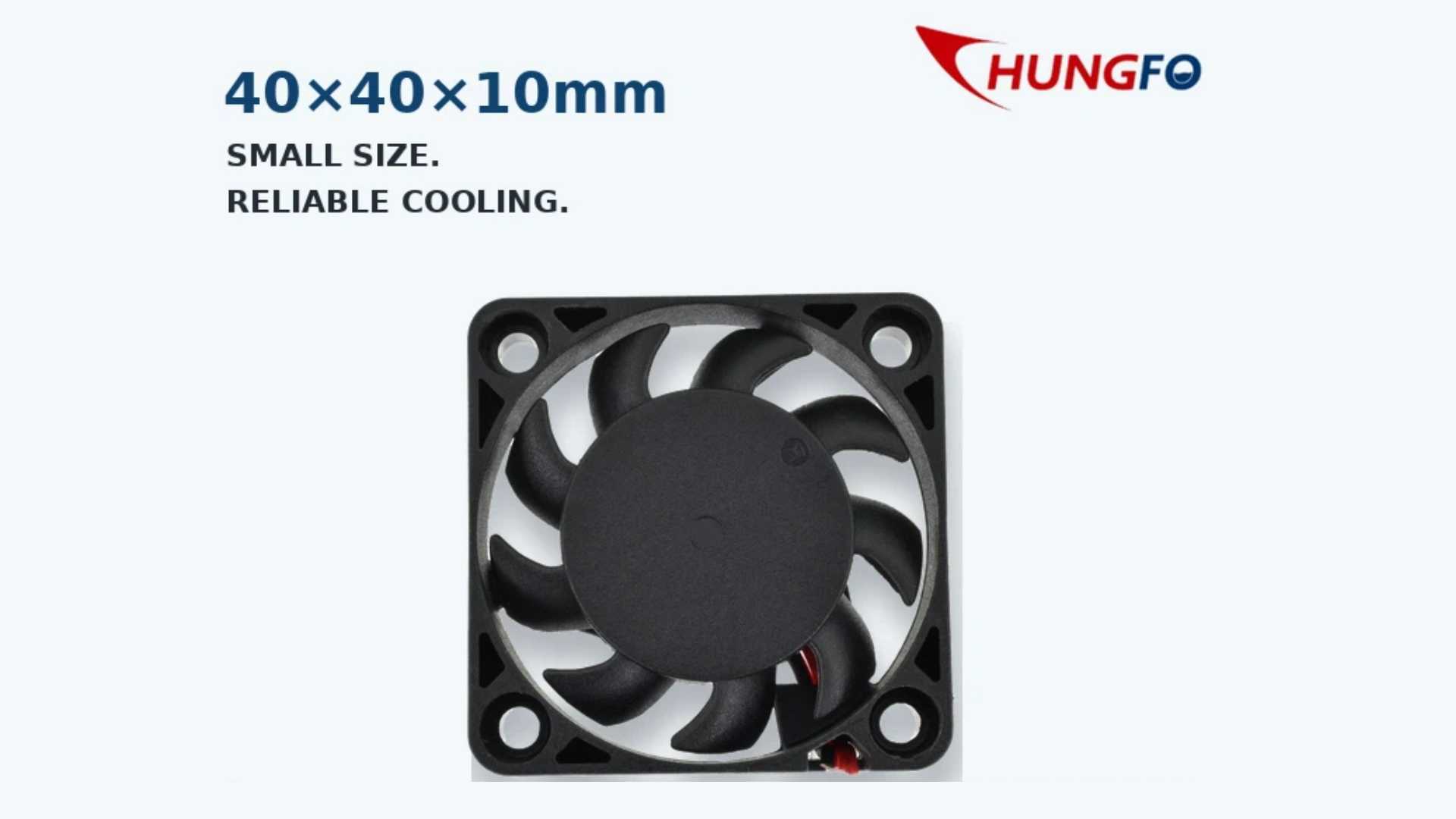

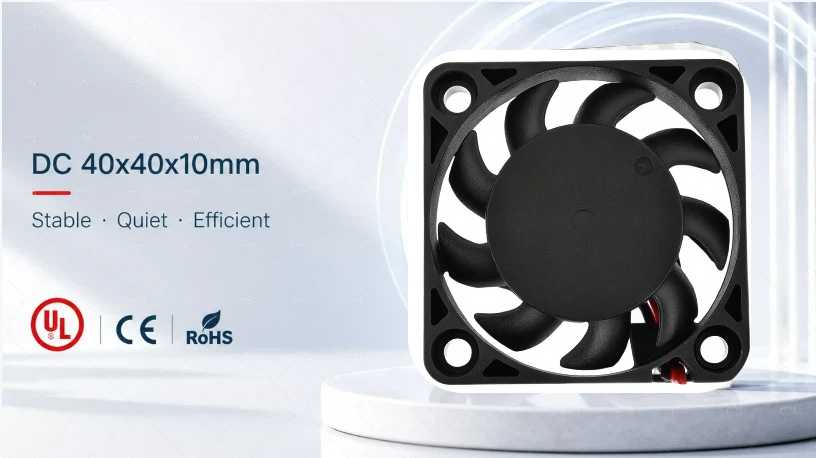

Para equipos arquitectónicos compactos, un ventilador axial de CC puede ser útil cuando el espacio es limitado y la aplicación requiere un flujo de aire directo a través de una vía de ventilación relativamente abierta. Las estructuras de ventiladores axiales ofrecen una solución compacta sin sacrificar un rendimiento óptimo del flujo de aire.

Sin embargo, no todas las aplicaciones de ventilación deben utilizar una configuración axial. Cuando el sistema requiere mayor presión o presenta un flujo de aire complejo, una estructura centrífuga puede ser más apropiada. Por lo tanto, el ventilador debe seleccionarse en función de la resistencia del sistema, y no únicamente según la categoría del producto.

La relación entre el caudal de aire y la presión es de suma importancia. Un ventilador no funciona a su caudal máximo una vez conectado a los conductos. El punto de funcionamiento real se determina por la intersección de la curva de rendimiento del ventilador y la curva de resistencia del sistema.

En proyectos arquitectónicos de lujo, los ingenieros deben determinar la resistencia del sistema antes de seleccionar el ventilador. Esto incluye la longitud del conducto, codos, filtros, rejillas, compuertas, silenciadores, transiciones y otros componentes. Una vez conocida la presión requerida, se puede elegir el ventilador adecuado para proporcionar el flujo de aire necesario sin una velocidad excesiva.

Por qué una velocidad más baja puede mejorar el confort acústico

La velocidad del ventilador es una de las variables más importantes que afectan al ruido. En muchas aplicaciones, aumentar la velocidad puede incrementar significativamente el ruido aerodinámico. Por lo tanto, un sistema que utilice un ventilador con una velocidad innecesariamente alta puede generar problemas acústicos, incluso si el ventilador en sí es técnicamente capaz de funcionar silenciosamente.

Un enfoque más adecuado consiste en elegir un tamaño de ventilador y un punto de funcionamiento apropiados para que el flujo de aire requerido se pueda suministrar a una velocidad de rotación razonable.

Aquí es donde los ventiladores compactos y el control de motor personalizado pueden resultar valiosos. En lugar de funcionar continuamente a máxima potencia, un sistema de ventilación puede utilizar un control de velocidad variable para adaptar el rendimiento del ventilador a la demanda real.

Por ejemplo, en un baño de una residencia de lujo, la extracción de aire puede ser más potente durante la ducha, pero el flujo de aire posterior puede ser mucho menor. Un ventilador de funcionamiento continuo puede funcionar a menor velocidad en condiciones normales y aumentarla temporalmente cuando sube la humedad.

Este enfoque ofrece varias ventajas. Puede reducir el ruido innecesario, disminuir el consumo de energía, prolongar la vida útil de los equipos y mantener un mejor control de las condiciones interiores.

El control PWM también permite una gestión de velocidad más precisa en sistemas que admiten la arquitectura eléctrica requerida. Al ajustar la velocidad del ventilador según la demanda real de ventilación, el sistema HVAC no necesita funcionar a máxima capacidad en todo momento.

El resultado es un sistema de ventilación más inteligente que permanece prácticamente invisible para los ocupantes.

El papel del diseño de motores y rodamientos

El motor es otra fuente importante de ruido. Un ventilador no produce ruido solo por el movimiento del aire a través de las aspas. Los componentes eléctricos y mecánicos también contribuyen al perfil sonoro general.

El desequilibrio del motor, la fricción de los cojinetes, el movimiento del rotor, la vibración estructural y las tolerancias de fabricación pueden influir en el comportamiento del ventilador.

Un motor sin escobillas bien diseñado puede proporcionar un funcionamiento estable y un control preciso de la velocidad. La selección de los rodamientos también influye en el rendimiento a largo plazo. Los cojinetes de fricción y los rodamientos de bolas tienen características diferentes, y la elección correcta depende del entorno de instalación, el tiempo de funcionamiento previsto, la temperatura, la orientación y la vida útil requerida.

En equipos compactos donde el espacio es limitado, los sopladores pequeños también pueden proporcionar soluciones útiles para el flujo de aire. El soplador 5015, por ejemplo, pertenece a un formato compacto que puede considerarse para aplicaciones donde se requiere un flujo de aire más dirigido. Su idoneidad depende del caudal y la presión de aire requeridos, más que de su tamaño físico.

El mismo principio se aplica al ventilador soplador 3010. Las estructuras de soplador muy compactas pueden ser útiles cuando el equipo de ventilación debe caber en espacios arquitectónicos reducidos o compartimentos de equipos ocultos. Sin embargo, las dimensiones reducidas no garantizan automáticamente un funcionamiento silencioso. El motor, la geometría del impulsor, el requisito de presión, la estructura de montaje y la velocidad de funcionamiento deben evaluarse en conjunto.

En los proyectos de lujo, el objetivo debe ser un funcionamiento estable y predecible, en lugar de simplemente el menor coste de compra posible.

Cómo reducir las vibraciones antes de que se conviertan en ruido.

Durante el diseño de sistemas de climatización, a menudo se pasa por alto la vibración. Los ingenieros pueden centrarse en los niveles de presión sonora sin prestar suficiente atención a cómo se propaga la vibración mecánica a través de la estructura del edificio.

Un ventilador montado directamente sobre un panel metálico rígido puede transmitir vibraciones a la estructura circundante. El panel puede entonces actuar como un radiador de sonido. En una habitación silenciosa, esta vibración puede hacerse perceptible incluso si el ventilador en sí tiene un nivel de ruido relativamente bajo.

Por lo tanto, un montaje adecuado puede marcar una gran diferencia.

Los componentes de montaje flexibles, los materiales de aislamiento de vibraciones, los componentes giratorios equilibrados, un montaje preciso y un soporte estructural adecuado pueden reducir la transmisión de vibraciones.

También debe tenerse en cuenta la superficie de montaje. Un panel metálico delgado puede amplificar las vibraciones de forma diferente a un panel estructural grueso. La carcasa circundante puede generar frecuencias resonantes que hacen que ciertas velocidades de funcionamiento del ventilador sean más perceptibles.

Por eso, la ingeniería acústica debería comenzar en la interfaz mecánica, en lugar de añadirse al final del proyecto.

Integración arquitectónica y ventilación oculta

Una de las características distintivas de la arquitectura de lujo es la limpieza visual. Los diseñadores suelen preferir equipos ocultos, rejillas integradas, aberturas mínimas y superficies sin interrupciones.

Por lo tanto, un sistema de ventilación debe integrarse en la arquitectura en lugar de convertirse en un objeto mecánico visible.

Fans can be positioned inside ceiling voids, service cavities, equipment compartments, bathroom ceiling systems, kitchen ventilation structures, furniture systems, or dedicated mechanical zones.

The challenge is to maintain sufficient airflow while preventing the fan from being obstructed.

A concealed fan still requires sufficient intake and discharge area. If the opening is too small, airflow resistance increases. If the grille is poorly designed, turbulence and noise may increase.

The ideal architectural solution balances three requirements. The fan should remain visually discreet, the airflow path should remain efficient, and maintenance access should remain practical.

This is particularly important in luxury residences where architectural finishes can be expensive and difficult to remove. A ventilation component that requires extensive ceiling demolition for routine maintenance can create a poor long term ownership experience.

Designing Maintenance Into The Architecture

A quiet exhaust fan is only successful if it remains quiet throughout its service life.

Dust accumulation, bearing wear, blade contamination, loose mounting components, and blocked airflow paths can gradually change fan performance. A system that was almost silent during commissioning may become more noticeable after years of operation.

Maintenance access should therefore be considered during the design stage.

Service panels can be hidden within architectural details. Removable grilles can provide access to filters and fan components. Modular fan assemblies can make replacement easier.

For high end buildings, maintenance should not require compromising the appearance of the interior. The service solution should be planned with the same attention given to lighting, plumbing, and electrical equipment.

This is one reason why fan manufacturers should communicate closely with HVAC engineers and architectural teams. Product dimensions, connector positions, mounting holes, airflow direction, replacement procedures, and service clearances can all influence the final building design.

Quiet Exhaust Fans In Luxury Bathrooms

Bathrooms are one of the clearest examples of why quiet exhaust ventilation matters.

A luxury bathroom may include stone surfaces, glass, wood, decorative metal, large mirrors, and other hard surfaces. These materials can reflect sound and create a more acoustically sensitive environment.

At the same time, bathrooms require effective humidity removal. Steam generated by showers and hot water can increase humidity rapidly. Without adequate exhaust, moisture may remain inside the room and contribute to condensation, odors, and long term material problems.

The ventilation system therefore has to remove humid air without becoming the dominant sound source.

A variable speed exhaust fan can provide a practical solution. During normal operation, the fan can run at a lower speed. When humidity increases, the control system can temporarily increase airflow.

This creates a ventilation pattern that follows actual demand instead of operating continuously at maximum capacity.

For luxury hotels and private residences, this type of control can significantly improve the perceived quality of the bathroom environment.

Luxury Kitchens Require Another Approach

Kitchen ventilation is more demanding because cooking generates heat, moisture, grease, odors, and particles.

A quiet fan cannot simply be selected based on sound level. It must also be capable of handling the required airflow and pressure conditions.

Duct length, bends, filters, dampers, and exhaust outlets can create substantial resistance. If the fan is undersized, airflow may be insufficient. If the fan is oversized and operated at unnecessarily high speed, noise may become excessive.

The design should therefore begin with the required airflow and pressure and then optimize the fan operating point.

In premium kitchens, the fan may also be separated physically from the occupied space. Placing the primary fan in a remote service location can reduce the amount of mechanical noise reaching the kitchen while maintaining effective air extraction.

This approach demonstrates an important architectural principle. Sometimes the quietest fan is not simply a quieter fan. It is a fan placed in a better location.

Quiet Ventilation In Luxury Hotels

Hotels present an even more complex challenge because the same HVAC principles must work across hundreds of rooms.

Guests have different expectations and different sensitivity to sound. A ventilation system that is acceptable to one guest may be noticeable to another.

Hotel rooms also have nighttime operating requirements. Guests may sleep while ventilation continues to operate.

Low speed continuous ventilation can therefore be useful when properly designed. Instead of allowing the fan to cycle between noisy high speed operation and complete shutdown, a controlled low speed mode can maintain background ventilation while minimizing acoustic disturbance.

Bathrooms can use humidity based demand control. Service rooms can use scheduled operation. Public areas can respond to occupancy. Conference rooms can respond to carbon dioxide or air quality sensors.

The overall objective is to make ventilation responsive without making the mechanical system noticeable.

Luxury Offices And Executive Spaces

Executive offices, boardrooms, private meeting rooms, and premium commercial interiors also require acoustic control.

A ventilation fan located near a conference room can interfere with speech intelligibility. A repetitive tonal noise can make conversations more difficult and can affect the perceived quality of meetings.

In these environments, fan selection should be coordinated with the acoustic requirements of the room.

The HVAC designer should consider not only the fan sound level but also duct breakout noise, grille noise, vibration transmission, and background sound.

A well designed system can locate fans away from occupied zones and use properly sized ductwork to distribute air quietly.

This is especially important in executive environments where confidentiality and concentration are important.

Wellness Spaces And Luxury Spas

Spas, wellness centers, meditation rooms, and premium fitness spaces place particularly high demands on acoustic comfort.

These environments are intentionally designed to reduce stress. Water features, natural materials, soft music, and controlled lighting are often used to create a peaceful atmosphere.

Ventilation must support humidity control and air quality without disturbing the experience.

In spa environments, humidity may be significantly higher than in ordinary commercial spaces. Fan materials, motor protection, bearing selection, and electrical protection should therefore be evaluated according to the actual environmental conditions.

Quiet operation remains important, but environmental reliability cannot be sacrificed for acoustic performance.

This is another reason why fan customization can be valuable. The ideal solution may require a specific voltage, airflow range, speed profile, material configuration, protection level, or control method.

The Importance Of Ductwork

Even the best quiet fan can become noisy when connected to poorly designed ductwork.

Small ducts increase air velocity. High velocity can generate turbulence and aerodynamic noise. Sharp elbows can create additional pressure loss. Poorly designed transitions can generate flow separation.

The solution is not necessarily to reduce fan speed alone. The entire airflow path should be optimized.

Duct diameter, length, bend radius, grille area, filter selection, and outlet geometry should be evaluated together.

A larger duct can sometimes allow the same airflow to move at a lower velocity, reducing turbulence. Smooth transitions can reduce pressure loss. Properly designed grilles can improve air distribution.

The fan and ductwork should therefore be treated as one system.

Acoustic Treatment And Fan Placement

Physical distance can also be an effective acoustic design tool.

If the fan can be located away from bedrooms, living rooms, meeting rooms, or relaxation areas, the perceived sound can be reduced.

Remote fan placement is particularly practical when the building includes accessible service zones. The fan can be positioned in a ceiling service cavity or mechanical room while the occupied room receives only the airflow through a properly designed duct system.

Acoustic lining and silencers can also be used where appropriate. However, these components create additional pressure resistance, so they must be included in the fan selection process.

Adding acoustic treatment after the fan has already been selected can cause unexpected airflow problems.

The best sequence is to calculate system resistance, select the fan, evaluate noise, and then optimize the complete system.

Smart Controls Make Quiet Ventilation More Effective

Modern luxury buildings increasingly rely on automation.

Ventilation can be connected to humidity sensors, temperature sensors, occupancy sensors, air quality sensors, timers, building management systems, and smart home platforms.

This creates opportunities for more precise fan operation.

Instead of running continuously at full speed, the system can respond to actual conditions.

A bathroom fan can increase speed when humidity rises. A storage room can operate according to a schedule. A private gym can increase ventilation when occupancy increases. A hotel room can maintain low background ventilation when occupied and adjust operation after the guest leaves.

This type of demand based control can improve both comfort and efficiency.

It also supports the architectural objective of invisibility. The ventilation system becomes something that reacts automatically rather than something occupants have to manage manually.

Energy Efficiency And Quiet Operation

Energy efficiency and acoustic comfort can support each other when the system is designed correctly.

Running a fan faster than necessary consumes additional power and may create unnecessary noise. A correctly sized fan operating near an efficient point can provide the required airflow without excessive energy use.

Variable speed operation can further reduce energy consumption during periods of low demand.

In large luxury buildings, even a small reduction in fan operating power can become meaningful over the lifetime of the building.

The energy strategy should therefore not focus only on the motor efficiency rating. It should consider the entire operating profile.

A fan that is efficient at maximum speed but spends most of its life operating at unnecessary capacity may not provide the best real world solution.

Customization For Architectural Projects

Standard fan products are useful for many applications, but luxury architectural projects often have unusual space and integration requirements.

A fan may need to fit into a specific cavity. The connector may need to face a particular direction. The mounting pattern may need to match an existing bracket. The operating voltage may need to match the building control system.

The fan may also require customized speed control, airflow direction, cable length, material, bearing configuration, or protection features.

This is where an experienced fan manufacturer can contribute beyond simply supplying a catalog product.

China Chungfo Fan can approach the application from the perspective of the actual equipment environment. Instead of treating the fan as an isolated component, the manufacturer can work with project requirements to identify the required airflow, pressure, voltage, dimensions, speed, noise target, and control method.

For architectural HVAC projects, this cooperation can shorten the gap between mechanical engineering requirements and the physical realities of the building.

Testing Before Mass Deployment

Luxury projects often involve significant investment in finishes and equipment. It is therefore advisable to validate ventilation performance before large scale installation.

Prototype testing can evaluate airflow, pressure, noise, vibration, temperature, and control behavior.

Acoustic testing can also identify unexpected tonal noise or structural vibration.

If a fan sounds acceptable in open air but becomes noisy after being installed inside an enclosure, the test environment can reveal the problem before the final architectural finishes are completed.

This is particularly valuable for hotel developments, premium residential towers, private clubs, medical facilities, and other projects where repeated modifications are expensive.

The goal is not simply to verify that the fan works. The goal is to verify that the complete ventilation system works as intended within the architectural environment.

Why Fan Manufacturers Should Understand Architecture

Traditional fan engineering often focuses on airflow, pressure, motor performance, temperature, and reliability.

Those specifications remain essential, but architectural applications require a broader perspective.

A fan may be technically excellent but difficult to integrate. It may provide high airflow but require too much space. It may be quiet in laboratory testing but create vibration after installation. It may be reliable but difficult to access for maintenance.

Architectural HVAC therefore requires collaboration between several disciplines.

Mechanical engineers determine airflow and pressure requirements. Electrical engineers determine power and control requirements. Acoustic engineers evaluate noise and vibration. Architects determine visual integration and spatial constraints. Facility managers consider maintenance and long term operation.

The fan manufacturer sits at the center of these requirements because the fan connects the electrical, mechanical, acoustic, and architectural systems.

A manufacturer capable of understanding these interactions can provide greater value than a supplier that only provides a specification sheet.

The Future Of Quiet Architectural Ventilation

The future of luxury HVAC design will likely move toward smaller, smarter, quieter, and more responsive ventilation systems.

Fans will increasingly operate according to actual environmental demand rather than fixed schedules.

Compact motors and improved control electronics will make variable speed operation more practical.

Sensors will provide more information about humidity, occupancy, air quality, and temperature.

Architects will increasingly expect ventilation components to disappear into the building rather than dominate the ceiling or wall.

At the same time, maintenance and reliability will remain critical. A luxury building cannot depend on a system that performs well only during the first few months of operation.

The most successful solutions will combine quiet mechanical design, efficient airflow, intelligent control, robust materials, reliable motors, and service friendly installation.

How To Specify A Quiet Exhaust Fan For A Luxury Project

The specification process should begin by identifying the actual ventilation requirement.

The design team should determine the required airflow, expected static pressure, operating schedule, available installation space, electrical supply, environmental conditions, acoustic target, control strategy, and maintenance requirements.

The next step is to identify the appropriate fan architecture.

An axial fan may be suitable for direct airflow applications with relatively low system resistance. A blower or centrifugal structure may be more suitable when the system requires higher pressure or directional airflow.

The fan should then be evaluated at its real operating point rather than only at free air conditions.

Noise should be evaluated together with vibration and installation conditions.

The mounting method should be designed before construction.

Ductwork should be sized to avoid unnecessary air velocity and pressure loss.

Control systems should be configured so that the fan operates according to actual demand.

Finally, prototype testing should be performed whenever the project has strict acoustic or architectural requirements.

This process creates a more predictable result and reduces the risk of expensive modifications after construction.

Conclusion

A quiet exhaust fan can be much more than a mechanical component inside a luxury building. When correctly integrated, it becomes part of the invisible infrastructure that supports comfort, air quality, humidity control, energy efficiency, and the overall feeling of refinement.

The key is to stop thinking about quietness as a single fan specification.

True acoustic performance depends on the interaction between the fan, motor, bearing, blade design, airflow, pressure, ductwork, mounting structure, architectural materials, controls, and maintenance strategy.

Luxury architecture demands this level of coordination because the mechanical system must deliver strong performance without becoming visually or acoustically dominant.

For bathrooms, kitchens, hotels, executive offices, spas, private residences, and premium commercial spaces, the right ventilation strategy can provide clean air and humidity control while remaining almost unnoticed.

China Chungfo Fan can support this approach by combining fan engineering with application based customization. From compact ventilation components to larger cooling and exhaust solutions, the right fan should be selected according to the complete system rather than one isolated specification.

The future of luxury HVAC is not simply about moving more air. It is about moving the right amount of air, at the right speed, through the right pathway, with the lowest practical acoustic and energy impact.

When ventilation becomes almost invisible, the architecture can speak for itself.

FAQ

What makes an exhaust fan suitable for luxury architectural HVAC?

A suitable exhaust fan should provide the required airflow and pressure while maintaining low acoustic output, low vibration, reliable operation, compact dimensions, and appropriate control capability. The fan must also be easy to integrate into the architectural and mechanical design.

Is a quiet exhaust fan always better than a high airflow fan?

Not necessarily. A fan must provide sufficient airflow for the application. Selecting an extremely quiet fan that cannot overcome system resistance may result in poor ventilation. The correct approach is to balance airflow, pressure, speed, efficiency, and acoustic performance.

Can a DC Axial Fan be used in architectural ventilation?

Yes, depending on the system design. ADC Axial Fancan be suitable for compact ventilation and cooling applications where the airflow path has relatively manageable resistance. The actual suitability should be determined by the required airflow and static pressure.

Why does a fan become louder after installation?

Installation can introduce additional resistance, turbulence, vibration, and resonance. Ductwork, grilles, mounting panels, and enclosures can all change the acoustic behavior of a fan. This is why system level testing is important.

How can fan speed control reduce noise?

Reducing fan speed during periods of low ventilation demand can reduce aerodynamic noise and mechanical activity. Variable speed control allows the fan to increase output only when higher ventilation is required.

Are small blower fans useful for luxury HVAC equipment?

Small blower fans can be useful where space is limited and a more directed airflow path is required. Products such as ablower fan 5015or a3010 blower fanmay be considered for compact equipment, but the correct model must be selected according to airflow, pressure, dimensions, and operating conditions.

How should fan vibration be controlled?

Proper balancing, bearing selection, rigid but suitable structural support, vibration isolation, and accurate installation can reduce vibration transmission. The surrounding enclosure should also be evaluated because structural resonance can amplify mechanical vibration.

Can a ventilation fan be completely hidden?

Yes. Fans can be installed inside ceiling cavities, service compartments, equipment cabinets, bathroom ceiling systems, or remote mechanical spaces. However, sufficient airflow clearance and maintenance access must still be provided.

How does ductwork affect exhaust fan noise?

Duct size, air velocity, elbows, transitions, filters, dampers, and grilles affect system resistance and turbulence. Poor duct design can force the fan to operate at higher speed and can generate additional aerodynamic noise.

Why is variable speed ventilation useful in luxury buildings?

Variable speed ventilation allows the system to respond to actual demand. It can provide lower background ventilation during normal conditions and increase airflow when humidity, occupancy, or air quality conditions require additional ventilation.

What should architects consider when integrating a quiet fan?

Architects should consider fan dimensions, installation location, access for maintenance, airflow openings, grille appearance, vibration transmission, duct routing, acoustic requirements, and coordination with ceilings and interior finishes.

Why should fan manufacturers participate early in a project?

Early cooperation allows the fan to be selected according to actual airflow, pressure, space, voltage, control, acoustic, and maintenance requirements. This can reduce the risk of redesign and improve integration between the HVAC system and architectural design.

What role can China Chungfo Fan play in luxury HVAC projects?

China Chungfo Fan can provide fan solutions based on application requirements, including airflow, pressure, voltage, dimensions, speed, noise, control, and installation conditions. For specialized projects, customized fan development can help bridge the gap between standard products and specific architectural HVAC requirements.
